Home > Stainless Steel Tubing > Stainless Steel 202 Tubing
Abhishek Pipes, a reputable manufacturer and supplier based in Dubai, UAE, specializes in high-quality **Stainless Steel 202 Tubing**. These tubes are crafted for strength, durability, and resistance to corrosion, making them perfect for a wide range of industrial applications. Built to meet international quality standards, they deliver outstanding performance whether used indoors or outdoors. Abhishek Pipes guarantees consistent reliability and a long service life, which makes their Stainless Steel 202 Tubing an excellent choice for construction, architecture, automotive, and general engineering projects. With impressive mechanical properties and resistance to wear and oxidation, these tubes are favored in industries that require dependable performance, stability, and cost-effective solutions without sacrificing quality.
**Stainless Steel 202 Tubing** is an austenitic stainless steel that contains chromium, nickel, and manganese, providing good corrosion resistance along with moderate strength. It typically boasts a tensile strength of around 520–750 MPa and showcases excellent ductility and toughness. The tubing is easy to form, weld, and fabricate, making it adaptable for various industrial uses. Its blend of mechanical strength, durability, and resistance to atmospheric corrosion ensures reliable performance in both structural and decorative applications, offering a cost-effective alternative to other stainless steel grades while maintaining a long service life under normal operating conditions.
Standard | ASTM, AISI, GB, JIS, customers’ requests available |
Size | Round Tube: OD: 16-119mm or customized |
Thickness | 0.25mm-3.0mm |
Length | 6m or according to customers’ request |
Sample | Free sample is available, but freight should be paid by you |
Tolerance
| Outer diameter: ±0.2mm |
Thickness: ±0.05mm | |
Length: ±0.5mm | |
Ends | In plain end or bevelled ends or as your requirements |
Welding Line Type | ERW (Electrical Resistance Weld) |
Finishing
| A. Sanded |
B. Gloss #400,Mirror #600 – #1000 | |
C. Brushed | |
D. Wood Grain | |
E. Embossed, Threaded | |
Application | Decorations, constructions, food industry, etc. |
Certification | ISO, SGS |
Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |

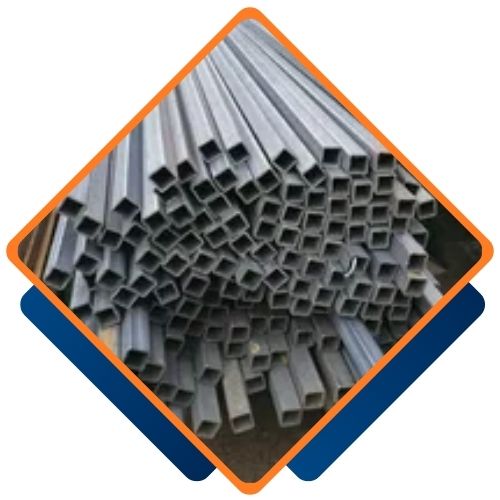

Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
Length | 6m or according to customer’s request |
Outer diameter | 6.35-219mm |
Tolerance | Outer diameter :±0.2mm |
Thickness :±0.02mm | |
Length :±0.5mm | |
Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Element | Content (%) |
|---|---|
| Iron, Fe | 72 |
| Chromium, Cr | 16.0 – 18.0 |
| Manganese, Mn | 5.50 – 7.50 |
| Nickel, Ni | 3.50 – 5.50 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.25 |
| Carbon, C | 0.15 |
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) | Hardness Rockwell |
|---|---|---|---|---|
| SS 201 Ann | 38 min. | 75 min. | 40% min. | HRB 95 max. |
| SS 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. | 25 – 32 HRC (typical) |
| SS 201 ½ Hard | 110 min. | 150 min. | 18.0 min. | 32 – 37 HRC (typical) |
| SS 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. | 37 – 41 HRC (typical) |
| SS 201 Full Hard | 145 min. | 185 min. | 9.0 min. | 41 – 46 HRC (typical) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Stainless Steel 202 Tubing from Abhishek Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Abhishek Pipes and Tubes, a leading supplier of Stainless Steel 202 Tubing in Dubai, UAE, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Abhishek Pipes and Tubes, we provide custom sizes of Stainless Steel 202 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
You’ll find **Stainless Steel 202 Tubing** commonly used in construction, interior design, and architectural projects for handrails, balustrades, and decorative frameworks. It’s also utilized in automotive parts, kitchen equipment, and furniture due to its corrosion resistance and appealing finish. In industrial settings, it serves in process piping, conveyor systems, and general engineering structures where moderate strength and durability are key. Its ease of fabrication and welding makes it ideal for custom designs and installations.
