Home > Stainless Steel Tubing > Stainless Steel 309 Tubing

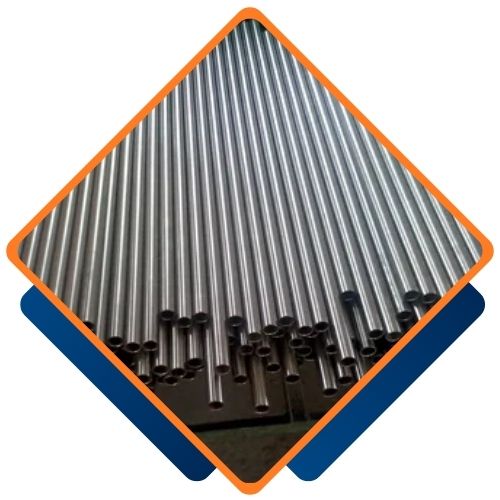

Abhishek Pipes, based in Dubai, UAE, stands out as a top manufacturer and supplier of Stainless Steel 309 Tubing. They specialize in delivering high-quality solutions that excel in high-temperature and corrosive environments. With cutting-edge manufacturing facilities and a strong dedication to international standards, the company ensures that their tubing is built for durability, precision, and reliability. Abhishek Pipes’ Stainless Steel 309 Tubing is well-known for its exceptional oxidation resistance, mechanical strength, and impressive service life, making it a go-to choice for industries around the world that need trustworthy tubing solutions.
This tubing is mainly made up of iron, chromium (22–24%), and nickel (12–15%), with carefully controlled amounts of manganese and silicon to boost its strength and stability. Its unique chemical makeup guarantees excellent oxidation and scaling resistance, even at high temperatures. On the mechanical side, it boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and good elongation, striking a perfect balance between toughness and durability. These balanced properties help it maintain stability and resist creep during prolonged high-temperature use, ensuring it remains reliable in tough industrial settings.
Specifications : ASTM A213, A312, A269, A358 / ASME SA213, SA312, SA269, SA358
Outside Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24″ NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Thickness Range : 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type : Seamless / ERW / Welded / Fabricated / CDW

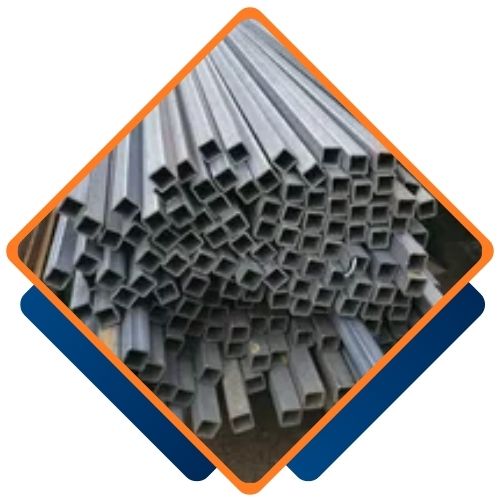

Form : Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Outside Finish : 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Tubes, Finish as per customer Requirements
Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 309 | min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 20.0 | 10.5 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 309 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Stainless Steel 309 Tubing from Abhishek Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Abhishek Pipes and Tubes, a leading supplier of Stainless Steel 309H Tubing in Dubai, UAE, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Abhishek Pipes and Tubes, we provide custom sizes of Stainless Steel 309 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Stainless Steel 309 Tubing finds extensive application in sectors like petrochemicals, refineries, power generation, and thermal processing, where high temperatures and corrosive media are the norm. It’s particularly well-suited for use in heat exchangers, boiler tubing, superheaters, and furnace components. Moreover, it plays a vital role in flue gas systems, kilns, and chemical processing units, thanks to its outstanding resistance to oxidation and scaling. Its long-lasting nature and durability also make it ideal for marine and structural applications, ensuring safe and efficient operations in challenging environments.
